NFC FRAMES
The need for Timber has been growing rapidly, leading to less of green cover, also the fact is the use of Timber cannot be stopped completely, but the way has to be found to minimise its use for the sake of our next generations. Keeping this in mind WudGres introduces WOODLORD –NFC Doors,NFC Frames,NFC Boards & several other products made from saw dust (wood powder) & virgin or recycled plastic composites. WOODLORDNFC is durable and long lasting. This being 100% recyclable makes it a environment friendly product.
DISCLAIMER
Colors of the products shown in Website are only for indication purpose, actual product may vary.
WudGres NFC DOORS - RICH 850D
| SL NO | DESCRIPTION | AVERAGE DENS |
|---|---|---|

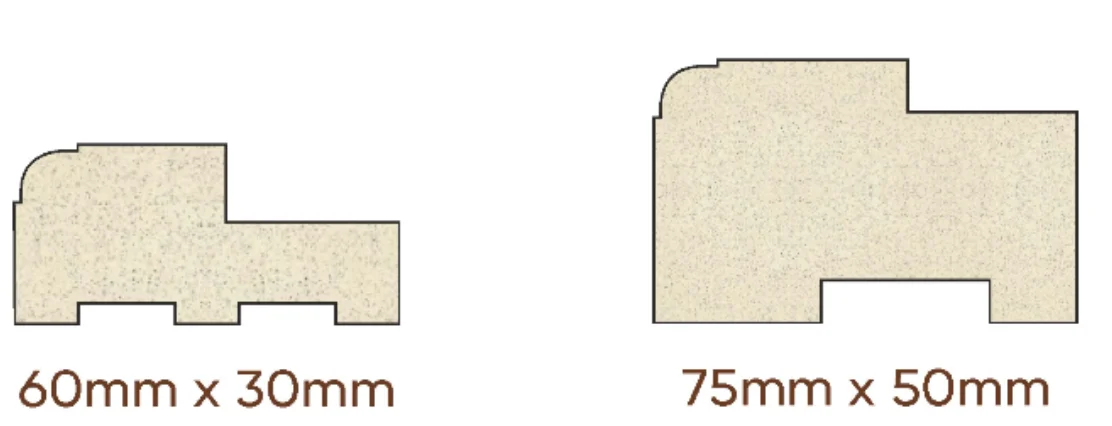

| A | FRAME SECTION 60x30 | 0.350 KG / RFT |
| B | FRAME SECTION 75x50 | 0.875 KG / RFT |

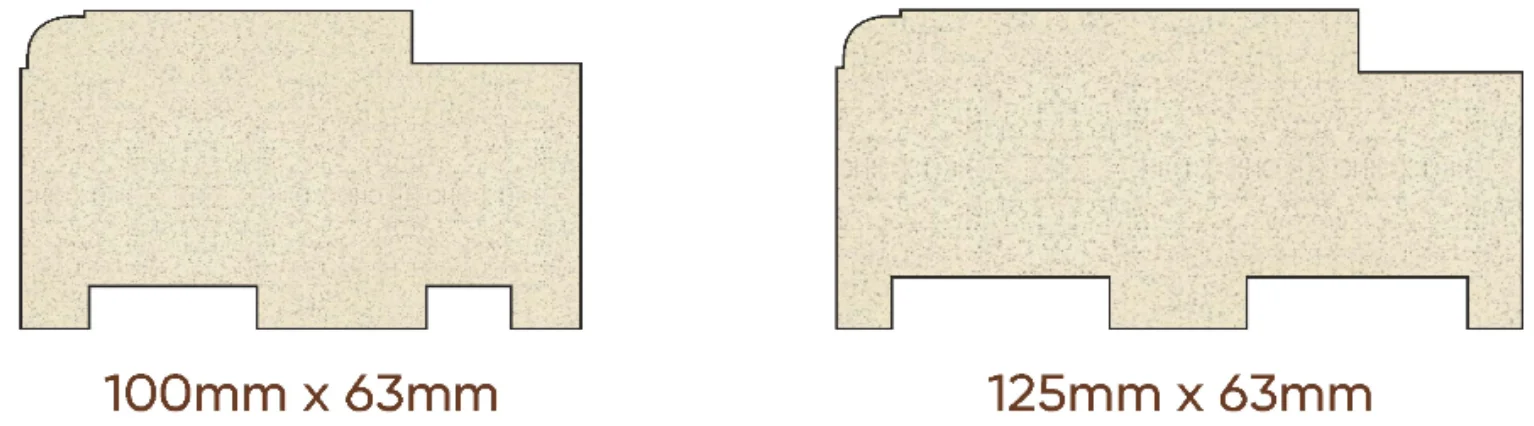

| C | FRAME SECTION 100x63 | 1.550 KG / RFT |
| D | FRAME SECTION 125x63 | 1.950 KG / RFT |
| SL NO | TEST | UNIT | RESULT |
|---|---|---|---|
| 1 | Density | Kg/m3 | 0.9 |
| 2 | Hardness - Shore 'D' | - | 0.9 |
| 3 | Water Absorption, 24 hours, 4 hours | % | 0.15, 0.32 |
| 4a | Tensile Strength at break b. Elongation | Kg/cm2 % | 275, 12 |
| 5 | Screw Withdrawal Strength kg. face | 249 | 5,266 |
| 6 | Nail Withdrawal Strength kg. face | 63.2 | 6,875 |
| 7 | Izod Impact | J/M | 20.1 |
| 8 | Chirpy Impact | KJ/m2 | 50.0 |
| 9 | Flexural Strength | Mpa | 13.1 |
| 10 | Flexural Modulus | Mpa | 686 |
| 11 | Flammability | - | Match with VO |
| 12 | Compressive Strength | Kg/cm2 | 100 |
| SINGLE DOOR FRAME 60x30, 75x50, 100x50, 100x62, 125x62 |
DOUBLE DOOR FRAME 125x62 |
All information mentioned above is based on typical sample, accurate to the best of our knowledge, and is provided without liability or commitment. As WOODLORD has no control over other use of this material, it does not give guarantee that the same results are obtained as mentioned here. Each user of material should make their own test in their local condition to confirm the suitability of the product for their particular use. Technical specifications are subject to change.
To check the price of the door, download WudGres app:
